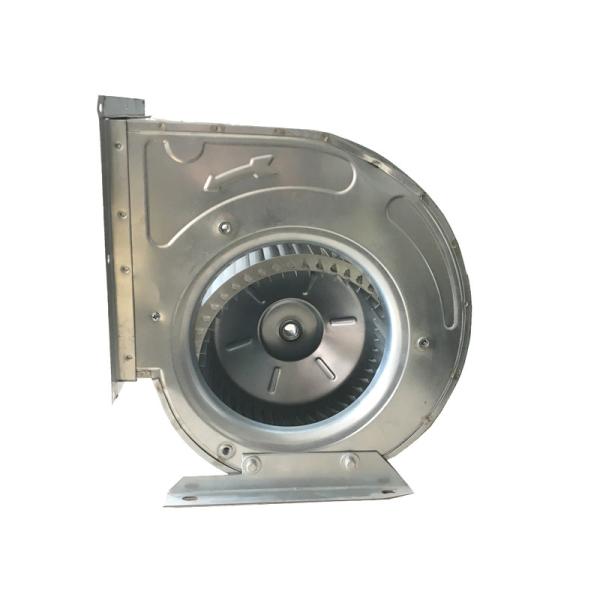

    1200rpm 220/240V Double Inlet Centrifugal Blower Scroll Housing Fan

    Ask Lasest Price
    Brand Name : CPMDJ
    Model Number : YDK120-120-6
    Certification : CCC
    Price : Negotiable
    Payment Terms : TT, LC
    Supply Ability : 10000000
    Delivery Time : 15-35 days
    • Product Details
    • Company Profile

    1200rpm 220/240V Double Inlet Centrifugal Blower Scroll Housing Fan

    Air Conditioning Centrifugal Fan Double Inlet Centrifugal Blower Scroll Housing Fan


    Changzhou Changpeng Motor Co., Ltd. is an ac motor manufacture. We not only can produce high quality goods, but also have good relationship with all our customers.
    For us, we not only business partner, as a matter of fact,we are family. Therefore, welcome all of you back home! We are expecting you!

    Specification:

    Fan modelMotor modelVoltageFrequencySpeedAir volumeCurrentCapacitor
    CPZ7-7YDK90-6203V-240V50/60Hz850RPM1000m³/h0.9A5μF
    YDK200-4203V-240V50/60Hz1150RPM1500m³/h1.8A10μF
    CPZ8-8YDK200-6203V-240V50/60Hz820RPM2000m³/h2.0A10μF
    YDK300-4203V-240V50/60Hz1200RPM2200m³/h2.1A10μF
    CPZ9-9YDK250-6203V-240V50/60Hz850RPM2000m³/h1.9A10μF
    YDK375-6203V-240V50/60Hz850RPM2000m³/h3.5A10μF
    YDK375-4203V-240V50/60Hz1200RPM2500m³/h3.5A10μF
    YDK550-4203V-240V50/60Hz1150RPM3250m³/h4.6A20μF
    CPZ10-10YDK450-6203V-240V50/60Hz850RPM3000m³/h3.5A20μF
    YDK550-4203V-240V50/60Hz1150RPM3250m³/h4.6A20μF
    CPZ12-9YDK750-6203V-240V50/60Hz830RPM3000m³/h7.2A30μF
    YDK900-4203V-240V50/60Hz1250RPM6000m³/h8.0A30μF
    CPZ12-12YDK750-6203V-240V50/60Hz830RPM3000m³/h7.2A30μF
    YDK900-6203V-240V50/60Hz880RPM7000m³/h8.6A30μF

    Product Features:

    Material:Housing:Sheet Steel
    Impeller:Galvanised Sheet Steel
    Rotor:Partially cast in aluminium
    Direction of rotation:CW OR CCW,seen on rotor
    Type of protection:IP44
    Insulation class:B/F
    Mode of operation:S1
    Mounting position:Any
    Bearing:Ball bearing (Maintenance)


    With integrated motor electronics, the fans can be easily speed controlled. As an option up to three air flow values can be programmed in "Constant Flow" mode. This means that if the system resistance changes, for example due to polluted filters, the fan keeps the programmed air flow by changing the speed automatically.
